19" Rack-mounted Laser Chiller | Photonics Laser Industry

19" Rack-mounted Laser Chiller | High Precision Chiller
Most laser sources in the industry are sensitive to temperature fluctuation and it is often required to have chilled water supply at high temperature stability. And our Zepto series laser chiller provides high level of temperature stability at accuracy of +/-0.1K. Also, all of the Zepto series chiller come with our in-house designed Temperature Control Unit (TCU), which is available for RS485 communication with the laser console and D-sub9 interlock connection.

Features

High temperature stability of +/-0.1K

Compatible with de-ionized water as water circuit is designed with non-ferrous material

Interlock and remote diagnostics are made available via DSUB-9 and RS485

Customized design and built according to customer request

Product Information

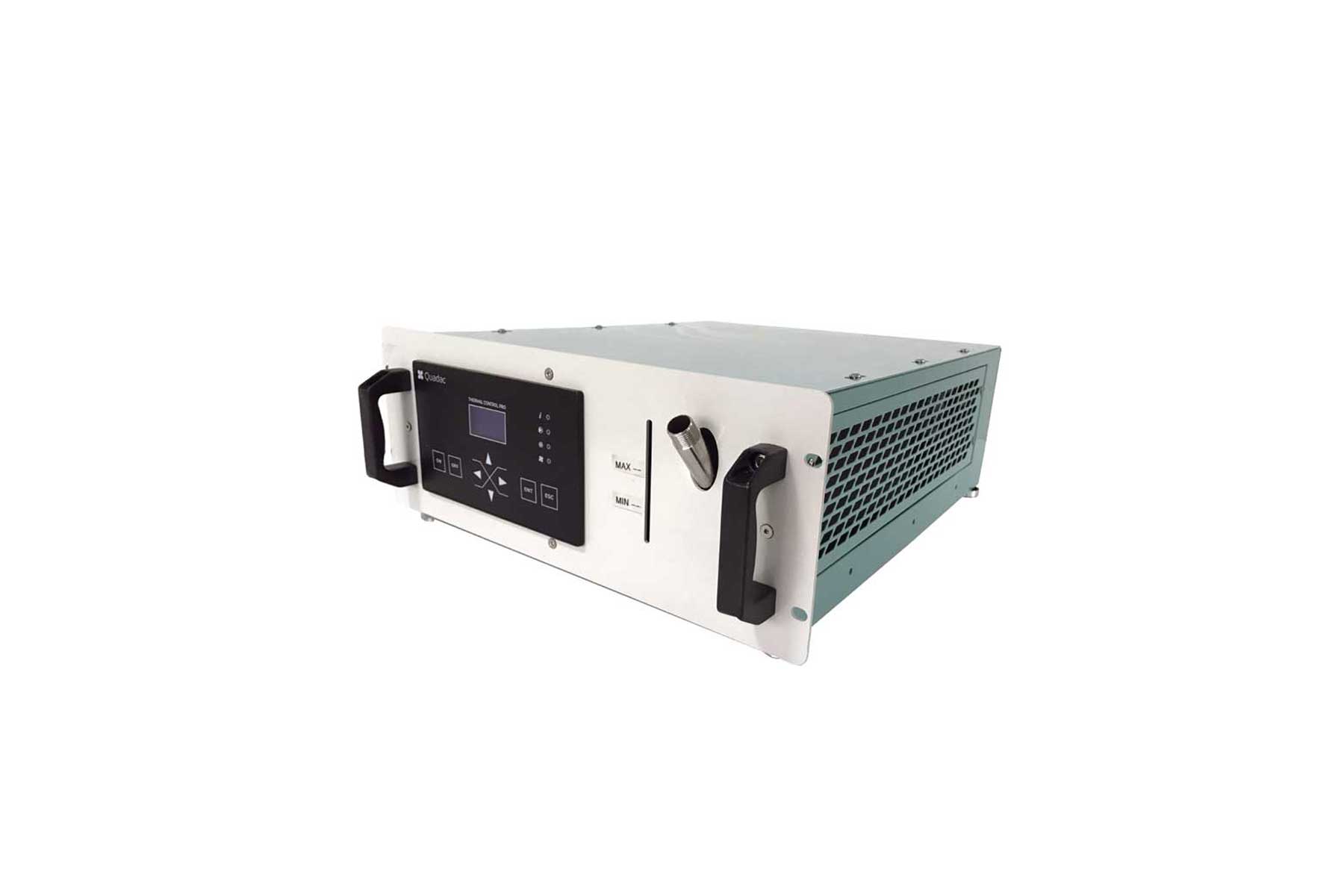

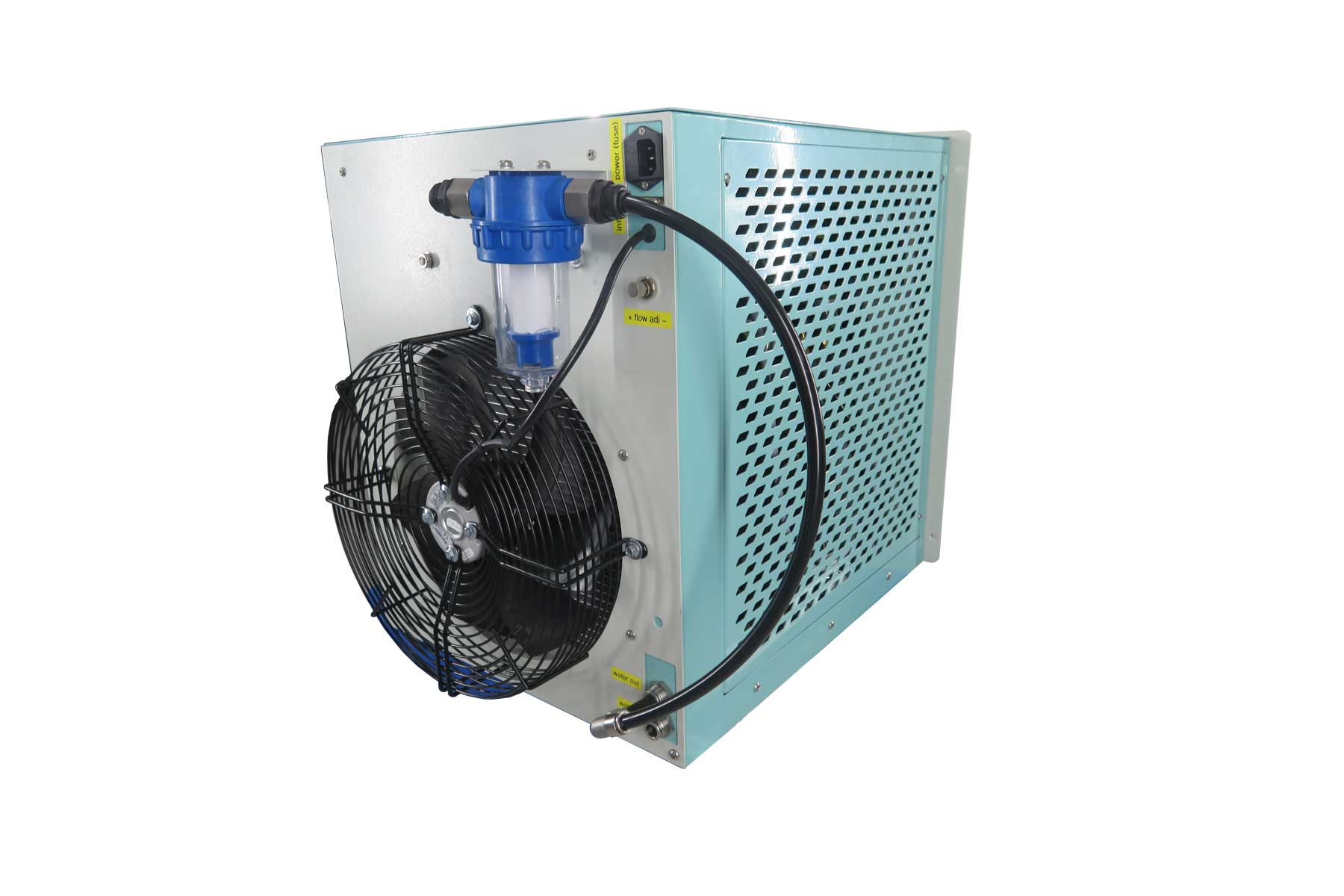

Zepto Series | 19" rack-mounted laser chiller

Zepto laser chiller is designed to achieve stable water flow and temperature stability to ensure the operation of laser systems. The chiller can used fitted into a standard IT rack cabinet. Water can be easily refilled in the font without special tool. The zepto series laser chiller is known for its reliability and stability and is available in different cooling capacities between 400W and 3500W.

	Height (4U / 8U / 12U; 1U = 44.5mm)	Cooling capacity	Temperature accuracy	Flow rate Other pump selection avalible on request	Dimension	Supply voltage	Voltage frequency
zepto 40
	4U	400W	+/-0.1 K	4 l/min; other flow rate availble upon request	Width: can be fitted into 19" IT rack Depth: approx. 640mm	220V +/- 10%, 1p; other voltages available upon request	50Hz; other frequency available upon request
zepto 75
	4U	750W	+/-0.1 K	4 l/min; other flow rate availble upon request	Width: can be fitted into 19" IT rack Depth: approx. 640mm	220Vac +/- 10%, 1p; other voltages available upon request	50Hz; other frequency available upon request
zepto 150
	8U	1500W	+/-0.1 K	8 l/min; other flow rate availble upon request	Width: can be fitted into 19" IT rack Depth: approx. 640mm	220Vac +/- 10%, 1p; other voltages available upon request	50Hz; other frequency available upon request
zepto 210
	8U	2100W	+/-0.1 K	8 l/min; other flow rate availble upon request	Width: can be fitted into 19" IT rack Depth: approx. 640mm	220Vac +/- 10%, 1p; other voltages available upon request	50Hz; other frequency available upon request
zepto 295
	12U	2950W	+/-0.1 K	12 l/min; other flow rate availble upon request	Width: can be fitted into 19" IT rack Depth: approx. 640mm	220Vac +/- 10%, 1p; other voltages available upon request	50Hz; other frequency available upon request
zepto 315
	12U	3150W	+/-0.1 K	12 l/min; other flow rate availble upon request	Width: can be fitted into 19" IT rack Depth: approx. 640mm	220Vac +/- 10%, 1p; other voltages available upon request	50Hz; other frequency available upon request

1 / 4

2 / 4

3 / 4

4 / 4

❮ ❯

Zepto Series | Availble Pump Selection

Zepto laser chillercan be equipped with rotary vane pumps of different capacities, from 4LPM to 15LPM. You are recommended to get in touch with us for any special coolant being used in your process.

Pump Model: PD-1 / PD-2 / PD-3 / PD-4

Pump Model: PDG-1 / PDG-2 / PDG-3 / PDG-4

To be uploaded
