MRI Chiller | Healthcare Imaging MRI System

Refrigeration Cooling System | Primary Circuit Chiller
The refrigeration circuit system cooled the process water and supply to the heat exchanger unit. The cooling system is a cabinet designed to form a complete module cooling system with the heat exchanger unit for the MRI system.

Features

Available for water-cooled system or an external condenser system

Cooling capacity from 20~60kw

Interlock and remote diagnostics are made available via RS232 and fiber optics connection

Customized design and built according to customer request

Product Information

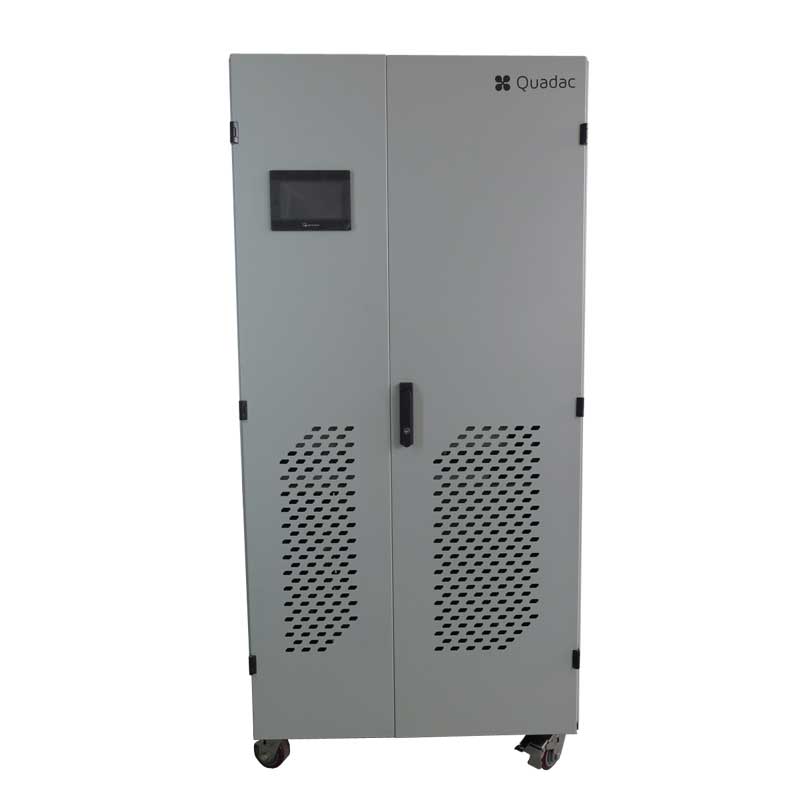

Femto Series | Liquid to Liquid Cooling System

Liquid to liquid cooling system is designed to separate the process cooling loop where the circulating coolant such as deionsied water or glycol-water mixture are in contact with the internal structure of the client's machinery which is often expensive and mission critical. The femto series liquid to liquid cooling system are available in different number of indpendent temperature-controlled zones.

	Numbe of zones	Cooling capacity of each zone	Flow rate	Dimension	Supply voltage	Voltage frequency
femto.itc 220
	2	2 kW	20 l/min	900(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request
femto.itc 320
	3	2 kW	20 l/min	900(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request
femto.itc 420
	4	2 kW	20 l/min	1200(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request
femto.itc 520
	5	2 kW	20 l/min	1200(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request
femto.itc 620
	6	2 kW	20 l/min	1800(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request
femto.itc 720
	7	2 kW	20 l/min	1800(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request
femto.itc 820
	8	2 kW	20 l/min	1500(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request
femto.itc 920
	9	2 kW	20 l/min	1500(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request
femto.itc 1020
	10	2 kW	20 l/min	1500(W) x 700(D) x 1860 (H)	400V +/- 10%, 3p; other voltages available upon request	50Hz; other frequency available upon request

1 / 4

2 / 4

3 / 4

4 / 4

❮ ❯

Performance graphs availble upon request

To be uploaded
